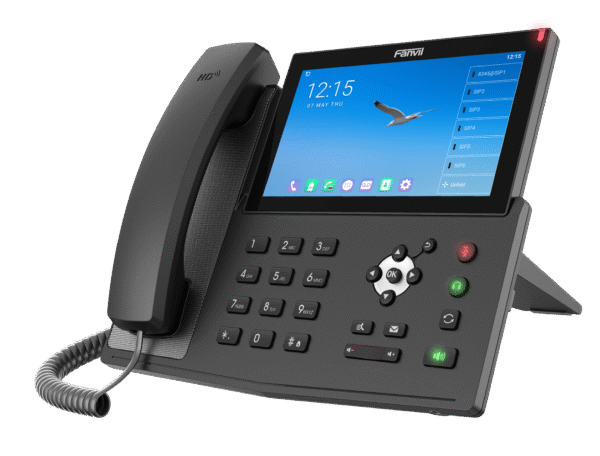

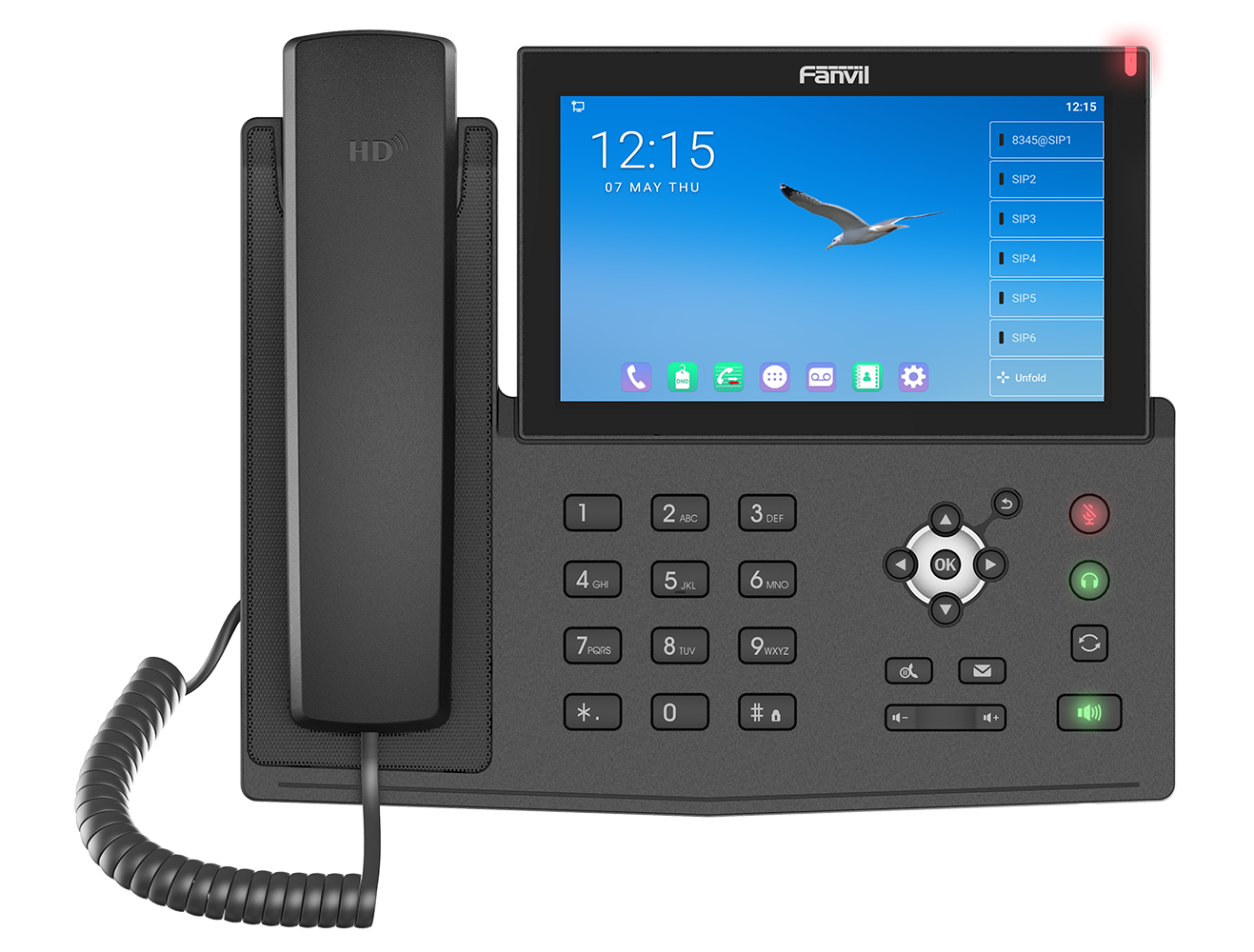

X7A Android Touch Screen IP Phone

A high-end enterprise IP phone featuring Android, Wi‑Fi/Bluetooth, video support, and a powerful 7″ color touchscreen.

Hardware & Display

• 7″ capacitive touchscreen (1024 × 600) with adjustable stand angles (~40°–50°)

• 112 one-touch DSS keys on-screen for speed-dial and call control

• Android 9.0 OS allowing custom apps and business workflows

Lines & Audio/Video

• 20 SIP accounts supported

• HD Voice with wideband codecs: G.722, Opus; full-duplex speakerphone with echo cancellation

• Video support: H.264 video codec, up to 1080p decoding, optional USB camera (Fanvil CM60)

Connectivity

• Dual Gigabit Ethernet with PoE for seamless network integration

• Built-in Wi‑Fi (2.4/5 GHz, 802.11 a/b/g/n/ac) & Bluetooth 4.2

• USB‑A port for flash storage or optional accessories

Features & Applications

• Supports local & remote phonebooks (up to 2,000 entries each), and retains 1,000 call logs

• Programmable DSS/soft keys, action URLs, screen savers, voicemail indication

• Supports conferencing: 3‑way audio, video decoding

• Miracast screen sharing, call recording, hotspot mode, SIP features (BLF, park/pickup, hotdesking)

Security & Provisioning

• SIP over UDP/TCP/TLS, SRTP, HTTPS, AES encryption

• Network standards: IPv4/IPv6, VLAN, QoS, 802.1x, LLDP/CDP, VPN support

• Auto-provisioning via FTP/TFTP/HTTP/SIP PnP/TR-069; remote management via web/Telnet

Power & Physical

• Power options: 5 V/2 A adapter or IEEE 802.3af PoE

• Consumption: ~0.9–11.9 W depending on load

• Size: ~268 × 185 × 168–189 mm (two stand angles), weight ~1.2 kg

• Temperature/humidity: 0–45 °C, 10–95% RH

Ideal Use Cases

Perfect for:

• Executive desks

• Video conferencing rooms

• Reception and customer-facing roles

• Apps and enterprise collaboration
